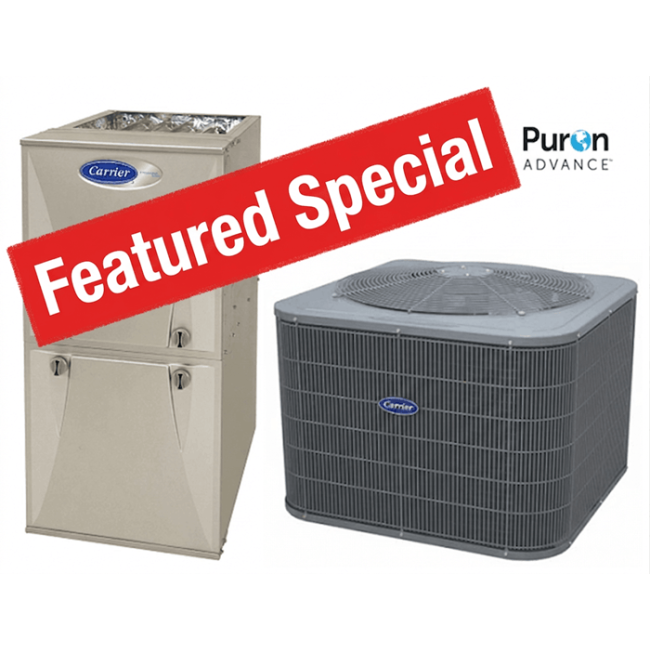

27TPA8 2 Stg Heat Pump R454B

27TPA8 2 Stage R454B Performance series heat pumps offer that perfect balance between budget limits you may have today and your desire for long-term energy savings.

The 27TPA8 boasts cooling efficiencies of up to 18 SEER2. Like other Carrier heat pumps it's designed to be Hybrid Heat® system compatible to help you save on heating costs in winter too. But this Performance model also goes that one step further to give you two-stage compression for added comfort and quiet.

Pair your InteliSense-enabled Performance Series Heat Pump with an ecobee for Carrier Smart Thermostat to grant permission for data sharing, and enjoy the benefits of connected comfort. InteliSense™ technology gives a Servicer depending on application the ability to remotely view the operational health of your system and use digital tools to provide more efficient customer service and remotely troubleshoot your system.

Overall Efficiency
All sizes ENERGY STAR® certified
COOLING SEER2    Up to 18
COOLING EER2    Up to 14
HEATING HSPF2    Up to 8.5
Comfort Features Enhanced
Humidity Control Enhanced
Compressor Type    Two-stage
Sound Performance    Standard
Sound Level (As Low As) 65 decibels
Silencer System II Design Not applicable
Compressor Sound Blanket Yes

59TP7A Multipoise Performance™ two-stage Condensing Gas

Furnace features a variable 25-speed constant-torque ECM motor.
The Comfort Heat® technology two-stage gas valve is at the heart of the comfort provided by this furnace, along with the variable-speed ECM blower motor, and two-speed inducer motor.
With an Annual Fuel Utilization Efficiency (AFUE) up to 97% AFUE, the Performance™
Series two-stage gas furnace provides exceptional savings when compared to standard gas furnaces.
This Performance Gas Furnace also features 4-way multipoise installation flexibility, and is available in six model sizes. The 59TP7A can be vented for direct vent/two-pipe, ventilated combustion air, or single-pipe applications. All sizes are design certified in Canada. This furnace is not designed for use in recreation vehicles, manufactured (mobile) homes or outdoors.
PERFORMANCE
• Variable 25-speed, constant-torque (VCT) ECM blower motor, two-speed inducer motor, and two-stage gas valve
• Fully-insulated casing including blower section
• Aluminized-steel primary heat exchanger
• Stainless-steel condensing secondary heat exchanger
• Silicon Nitride Power Heat™ Hot Surface Igniter
• Adjustable blower speed for heating, cooling, continuous fan, and dehumidification
• Comfort Heat Technology® feature intelligently stages heat and removes air stratification between rooms and within rooms.
• ComfortFan™ technology allows control of continuous fan speed
from a compatible thermostat
INSTALLATION FLEXIBILITY
• 4-way multipoise design for upflow, downflow or horizontal
installations, with unique vent elbow and optional throughthe-
cabinet downflow venting capability
• On-board NFC antenna makes setup a tap away when using the
Carrier service technician app
• Factory-configured ready for upflow applications
• Installation flexibility: sidewall or vertical vent
• Ideal height 35" (889 mm) cabinet: short enough for taller coils, but
still allows enough room for service
• Direct-vent/sealed combustion, single-pipe venting or ventilated
combustion air
APPLICATIONS
• HYBRID HEAT® Dual Fuel Compatible
• Convertible to propane with gas conversion accessory kit
• Convenient Air Purifier and Humidifier connections
• Twinning capable with accessory kit
• 80V21–20, 100V21–20, and 120V24–22 size allows 15 Amp breaker with accessory (order separately)
• SmartEvap™ technology prevents condensate that remains on the coil after a dehumidification cycle from re-humidifying throughout the home
CERTIFICATIONS
• All sizes meet ENERGY STAR® Version 4.1 criteria for gas furnaces: 95%+ AFUE
• Cabinet air leakage less than 2.0% at 1.0 in. w.c. and cabinet air leakage less than 1.4% at 0.5 in. w.c. when tested in accordance with
ASHRAE standard 193
• All sizes can be installed in air quality management districts with a 40 ng/J NOx emissions requirement
LIMITED WARRANTY *
• Default 5-year parts limited warranty
• Default 20-year heat exchanger limited warranty
* 10-year parts and lifetime limited heat exchanger warranty with timely registration
* Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
* Applies to original purchaser/homeowner and not available to subsequent owners. See warranty certificate for complete details and restrictions, including warranty coverage of other applications

CVAMA Puron Advance R454B Multi Position Evaporator Coil

This CVAMA evaporator coil incorporates proven standards for reliable system operation and performance throughout the life of this product. These quality coils, manufactured and installed as part of a total comfort system, provide AHRI-rated performance ratings and are additionally listed with UL and c-UL.

Available for use with Puron Advance R-454B refrigerant only, it is a cased V-coil that is housed in a durable, 24-gauge, pre-painted taupe metallic cabinet. The fully insulated cabinet (foil faced with R-2.1 insulation) provides for quiet efficient operation of the evaporator coil.

DESIGN FEATURES
• Refrigerant leak detection dissipation system for added safety.
• Designed with performance in mind, this new evaporator coil offers lower pressure drops to enhance system performance and airflow characteristics.
• All coils have refrigerant-specific, factory-installed TXVs. All models are factory pre-set to approximately 10° of superheat at the suction service valve.
• The corrosion-resistant drain pan is designed of a “Polybutylene terephthalate” material (PBT) that offers unsurpassed pan strength. It is engineered with proper slope to help ensure water drainage, improved moisture removal, and home comfort.
• The drain pan is supplied with three water-tight drain plugs to prevent leakage from unused drain connections.
• Provided with industry proven sweat connections for leak-free operation to maintain system reliability. The location of the line set connections allows for removal of the access door for easy cleaning/servicing of the coils, as well as easy access to the TXV. All models come from the factory with enough length of straight tube to accommodate braze-less compression fittings.
• Meets or exceeds burst pressure of 2100 psi, which is at least three times the maximum operating pressure it would see in actual cooling or heating applications.
• This cased coil comes with factory-installed UV knockouts for quick and easy installation of UV lights.
• Comes with a “no delta plate” for easy, quick access to both sides of the coil for service and cleaning. Also, after the door is removed and refrigerant lines disconnected, the coil is removable from the front of the unit without the use of any tools.
• All models are shipped with a complete A2L (R-454B) dissipation system, which is required for installation

WARRANTY
• Default 5-year parts limited warranty:
– 10-year parts limited warranty with timely registration*. Equipment must be registered within 90 days of original installation, except in jurisdictions where warranty benefits cannot be conditioned on registration.
* Applies to original purchaser/homeowner and not available to subsequent owners, except in jurisdictions where laws dictate otherwise.
See Warranty certificate for complete details and restrictions
